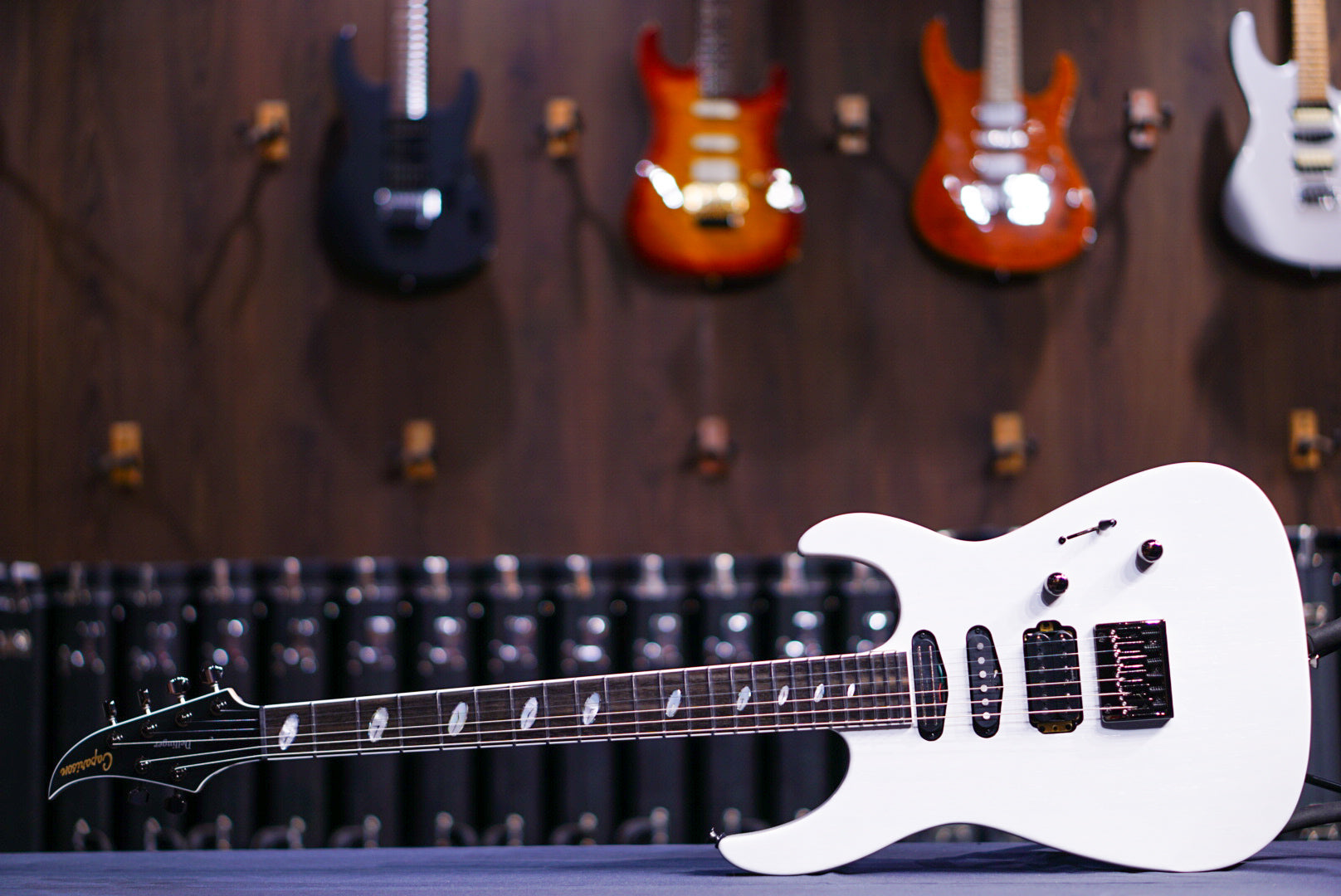

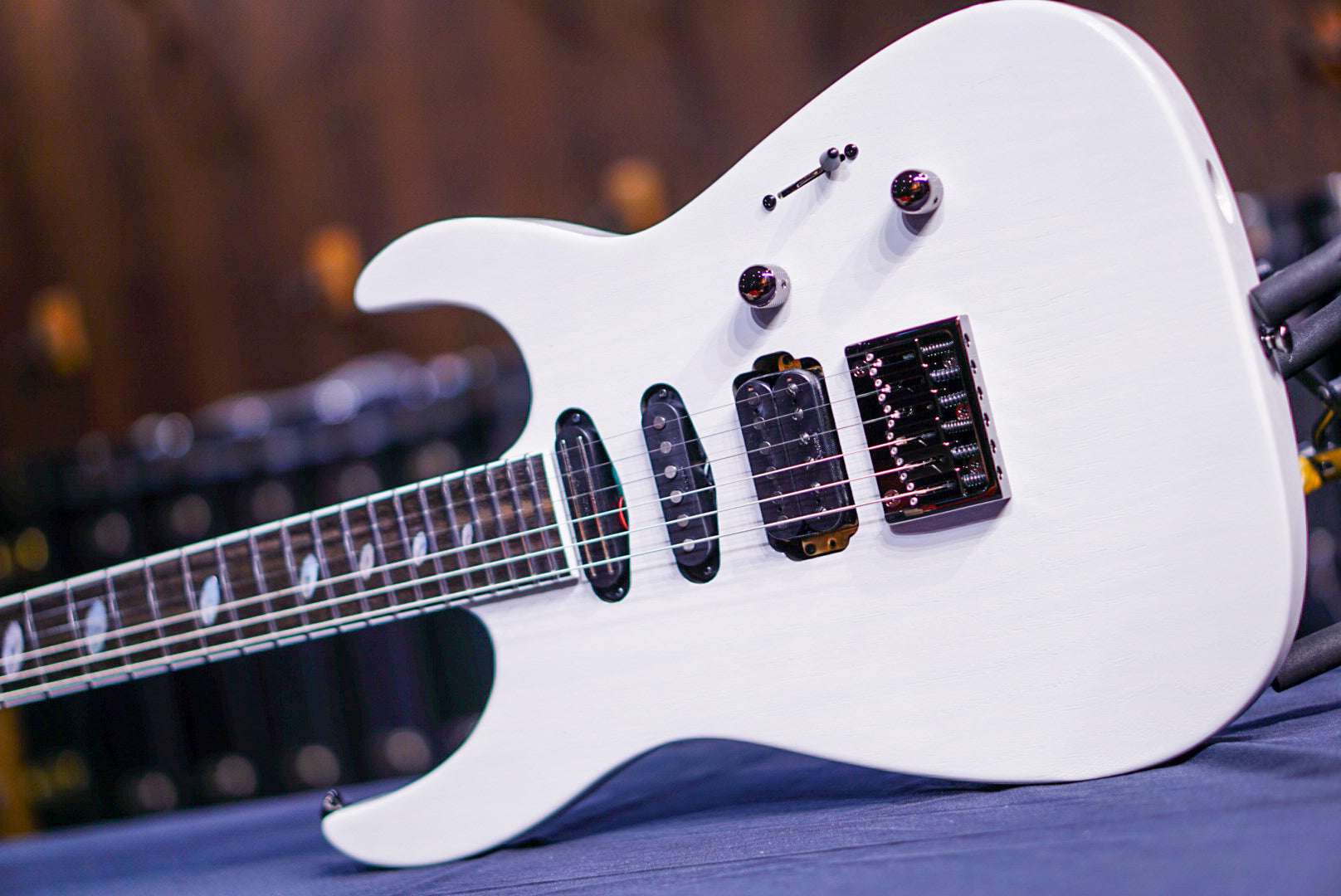

Caparison Dellinger WB-FX EF trans white 3360190

The latest evolution of the popular Dellinger series is based around a new and inspired confluence of tone woods.

The newly constructed bipartite body composition now features a select Walnut top section with an Australian Blackwood foundation. This distinctive combination provides an engaging, sustain rich tone with exceptional clarity in the mid to high frequency range. It implements a well defined, clear and articulate note separation. The inclusion of Jescar stainless steel jumbo frets further enhances the discernible clarity.

The new Dellinger-WB-FX also features the unique Caparison designed high mass ‘Fixed Bridge6’ which effortlessly deals with a variance of string gauges and extreme tunings while maintaining stability and sonic reinforcement. This stability is further enhanced by the use of Gotoh MG-T locking tuners and a Graph Tech Black TUSQ nut.

Caparison made high output SH-NC, VS-IAm and PH-Rm pickups add a unique and complimentary tonal colouration to the Dellinger-WB-FX, providing a whole gamut of timbres from an ultra aggressive growl to the sweetest bell-like harmonic cleans. A range that is further enhanced by a push-pull master tone pot, which simultaneously splits the coils in both the bridge and neck pickups, providing that classic single coil crisp glassy twang.

The 5 piece Maple-Walnut neck is smooth, fast, comfortable, plays like a dream and comes with a choice of Maple or Ebony fingerboards. The Dellinger-WB-FX is available in Natural, Trans Charcoal Black or Trans White colours, each designed to show of the beautiful contours and grain texture of each instrument that emphasises the beautiful simplicity of this effortlessly complex instrument.

Model Name: Dellinger-WB-FX
Body Shape: Dellinger
Body Material: Walnut Top, Australian Blackwood Back
Bridge: Caparison Fixed Bridge6
Head Top: Pro. Black
Neck Finish: Urethane Matt
Body Finish: Natural
Transparent Charcoal Black
Transparent White
Hardware: Gotoh Cosmo Black

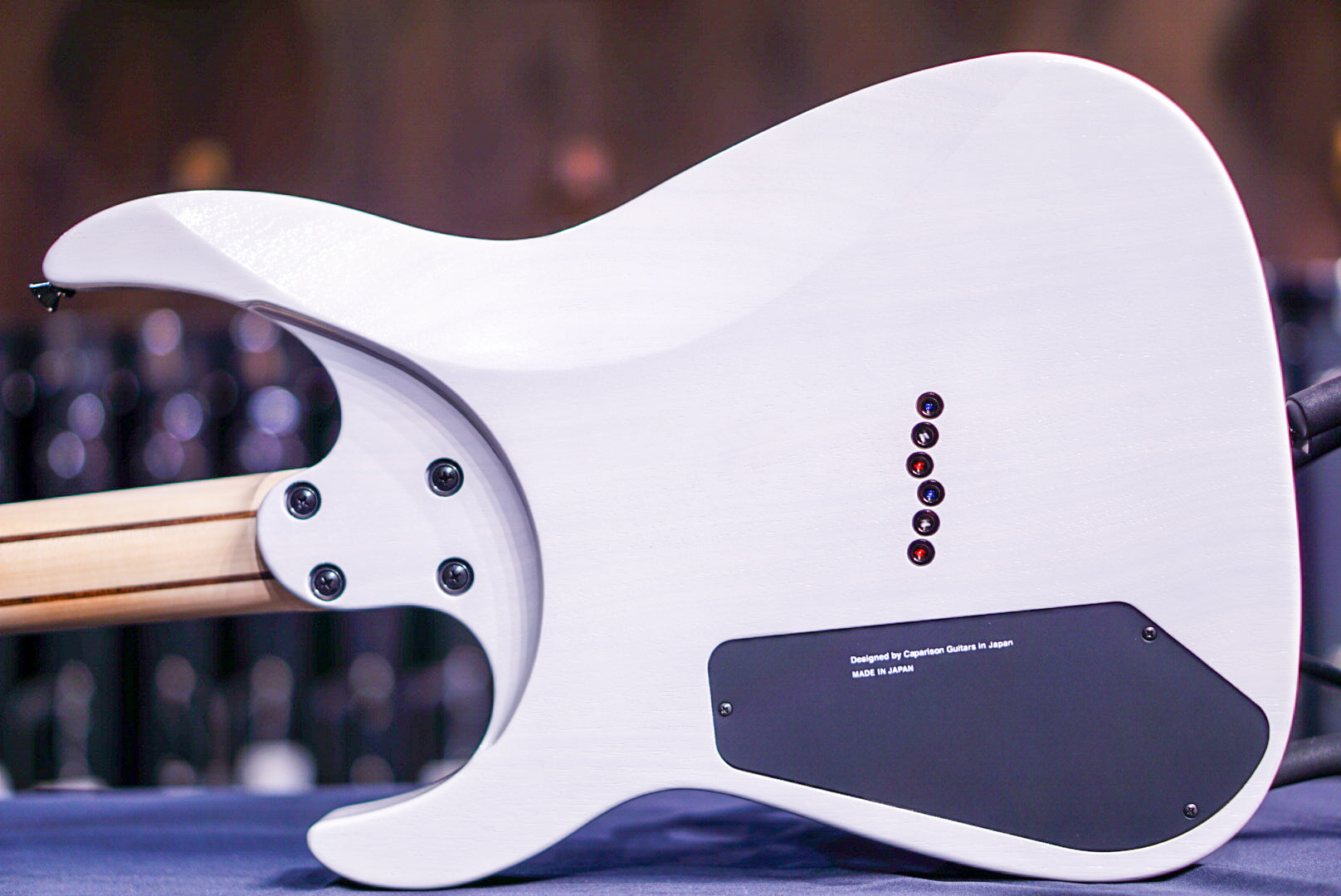

Neck Joint: Bolt-On
Neck Material: 5-Piece Maple & Walnut
Neck Grip: Caparison
Fingerboard: Ebony / Maple, White Binding
Radius: 350mmR to 400mmR
Scale Length: 648mm (25 1/2")
Nut Width: 42mm
No. of Frets: 24
Fret Type: Jumbo, Jescar FW57110S Stainless
Depth, 1st Fret Approx. 21.0mm
Depth, 12th Fret Approx. 22.0mm
Nut: Graph Tech Black TUSQ
Position Inlay: Clock Inlays

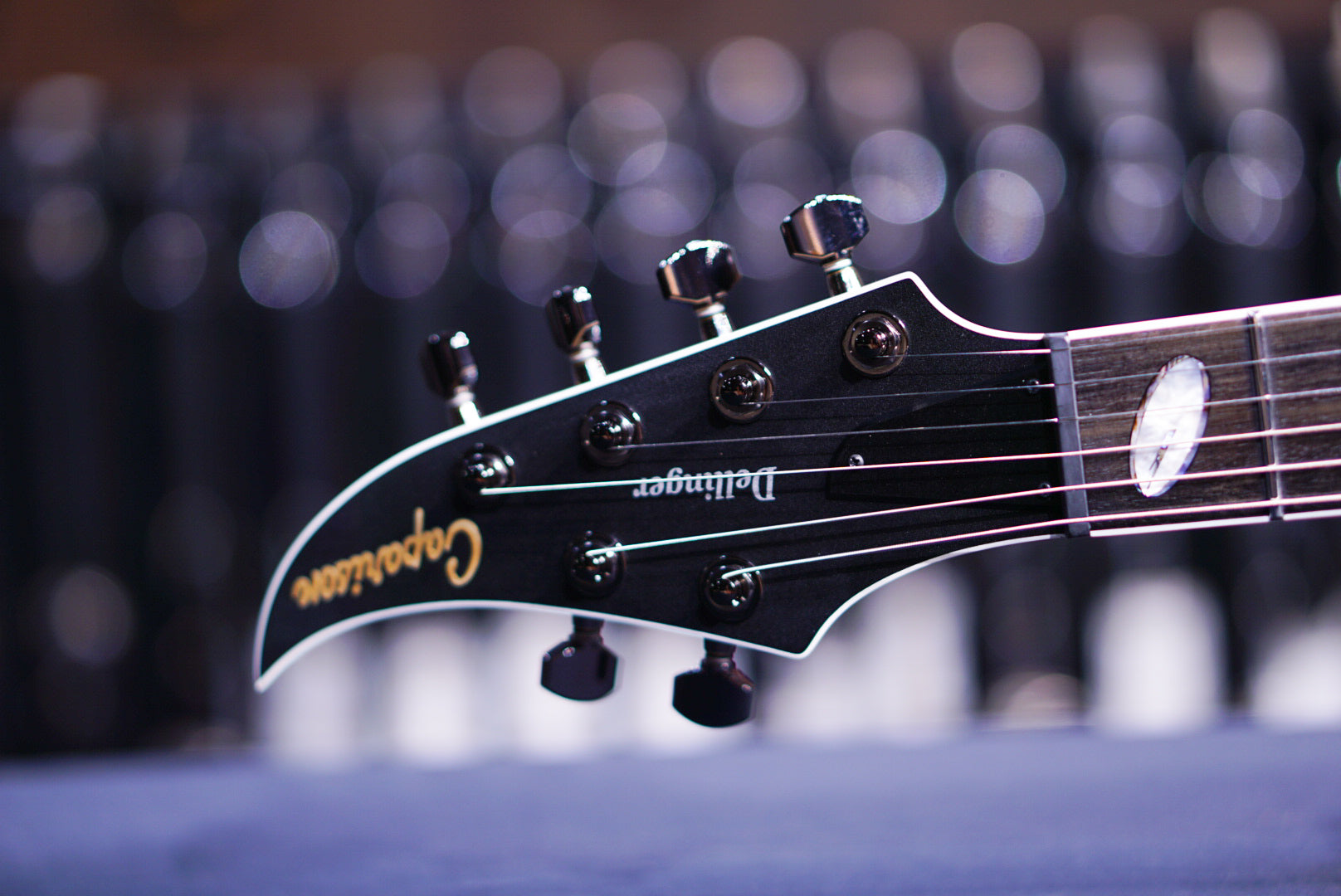

Headstock: Devil’s Tail, Dellinger Logo
Head Angle: 15 Degrees

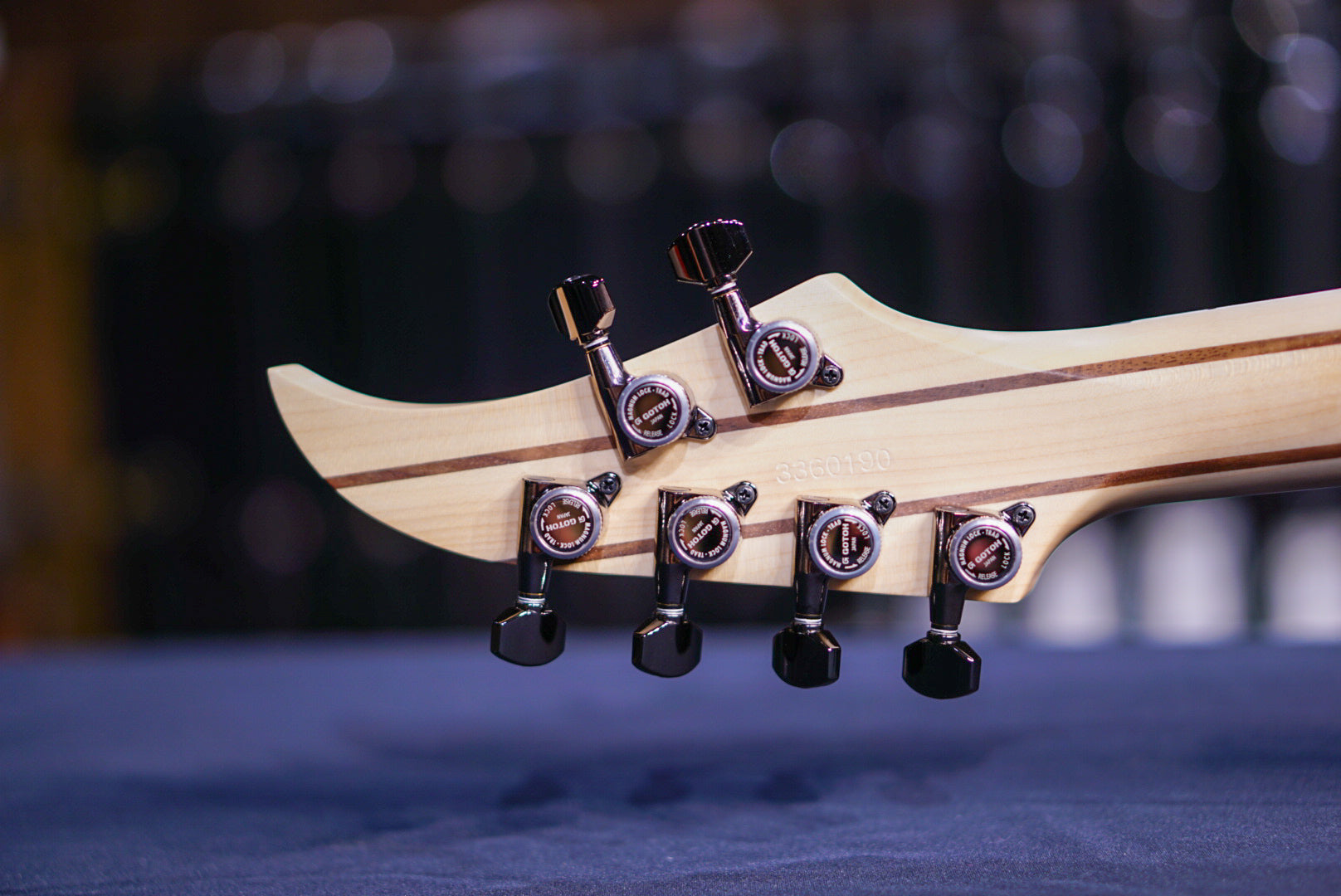

Tuners: Gotoh SG381-07 MG-T
Tuning: Standard D-Tuning (DAFCGD)

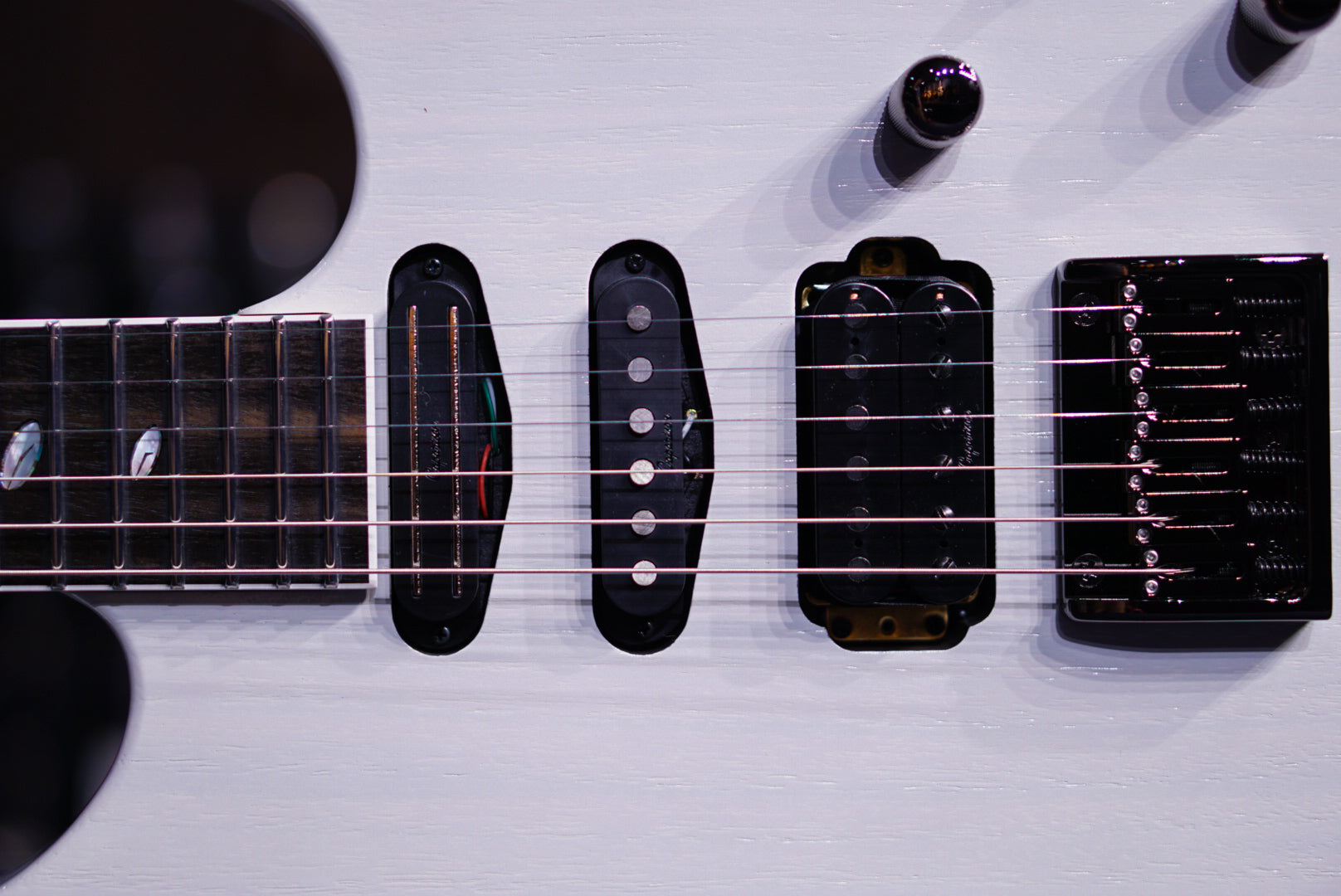

Strings: RotoSound (.010-.046)Neck Pickup: Caparison SH-NC
Middle Pickup: Caparison VS-IAm
Bridge Pickup: Caparison PH-Rm
Controls: CTS Master Volume, Schaller 5 Way Lever Switch, Master Tone with Push-Pull Switch
Case: Reunion Blues Continental Case
