Ernie Ball Music Man Axis Trans Gold Quilt Match Headstock G85940
SINCE 1996
The Axis guitar features a beautiful quilt or flame book matched maple top over a lightweight basswood body. Two medium output custom DiMarzio humbuckers are mounted directly to the body for optimum resonance and signal response. This tonewood/pickup combination is a perfect recipe for hard edge rock tones but also delivers a subtle dynamic response at lower volume levels when needed. The Axis asymmetric hard rock maple neck allows for comfortable hand positions across all 22 frets, while the double locking Music Man Floyd Rose tremolo keeps the guitar perfectly in tune.
| Specifications | Axis |
|---|---|
| Model | Axis |
| Size | 12-5/8" wide, 1-3/4" thick, 36-1/4" long (32.1 cm wide, 4.5 cm thick, 92.0 cm long) |
| Weight | 7 lbs, 4 oz (3.29 kg) - varies slightly |
| Body Wood | Basswood with bookmatched figured maple top |
| Body Finish | High gloss polyester |
| Body Colors | Back and Sides - Opaque Black; Choice of flame or quilt top in Trans Gold, Balboa Blue Burst or Natural Gloss |
| Body Bindings | Binding - Cream |
| Bridge | Music Man® double locking tremolo with fine tuners; lowers pitch only |
| Scale Length | 25-1/2" (64.8 cm) |
| Neck Radius | 10" (25.4 cm) |

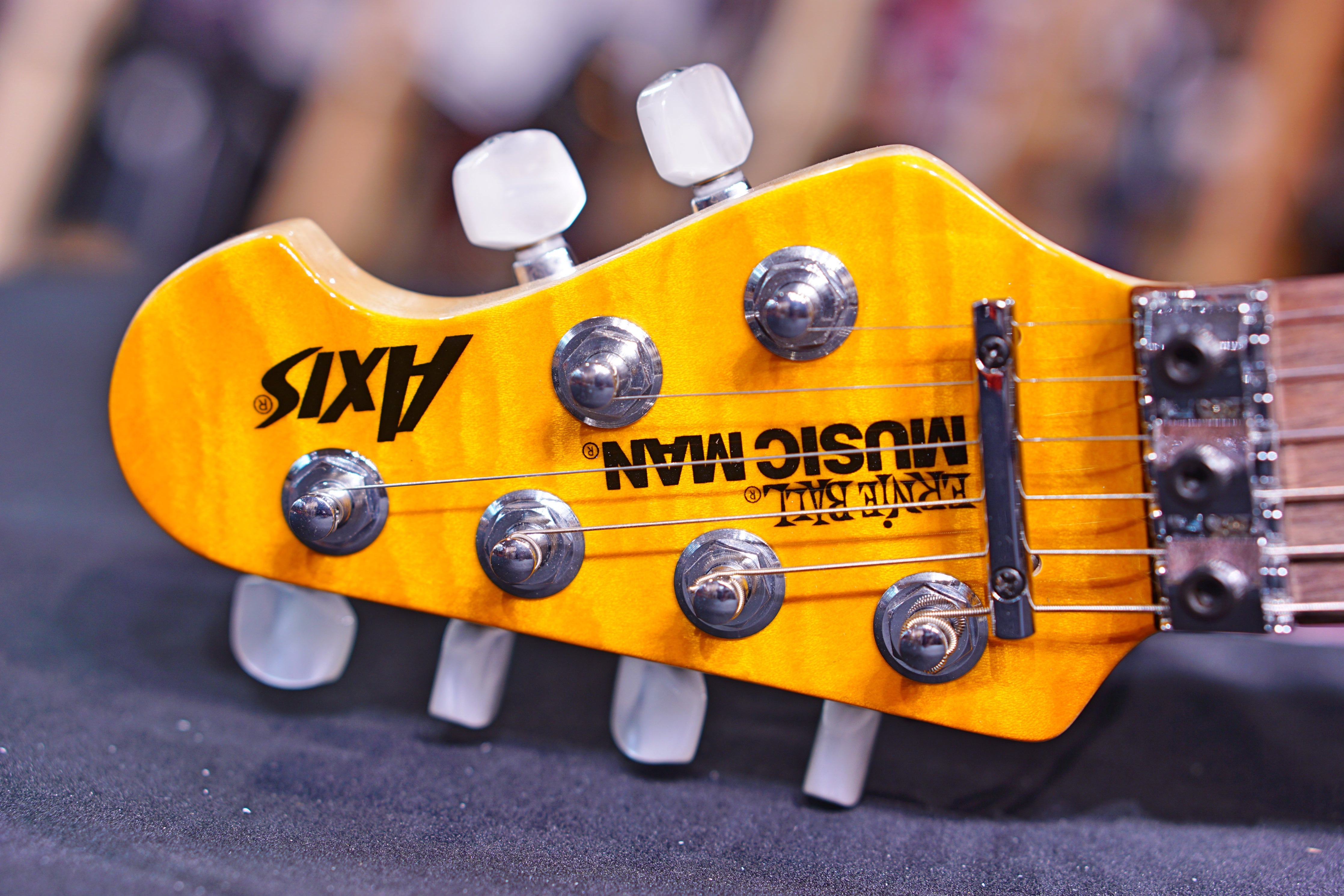

| Headstock Size | Only 5-7/8" (14.9 cm) long |
| Frets | 22 - High profile, medium width |
| Neck Width | 1-5/8" (41.3 mm) at nut, 2-3/16" (55.6 mm) at last fret |
| Neck Wood | Select maple neck |
| Fingerboard | Select maple |
| Neck Finish | Gunstock oil and hand-rubbed special wax blend |
| Neck Colors | Standard - Natural; Optional - Matching painted headstock |
| Tuning Machines | Schaller M6LA with pearl buttons |
| Truss Rod | Adjustable - no component or string removal |
| Neck Attachment | 5 bolts - perfect alignment with no shifting; Sculpted neck joint allows smooth access to higher frets |
| Electronic Shielding | Graphite acrylic resin coated body cavity and aluminum lined control cover |
| Controls | 500kohm volume pot |
| Switching | 3-way toggle pickup selector |

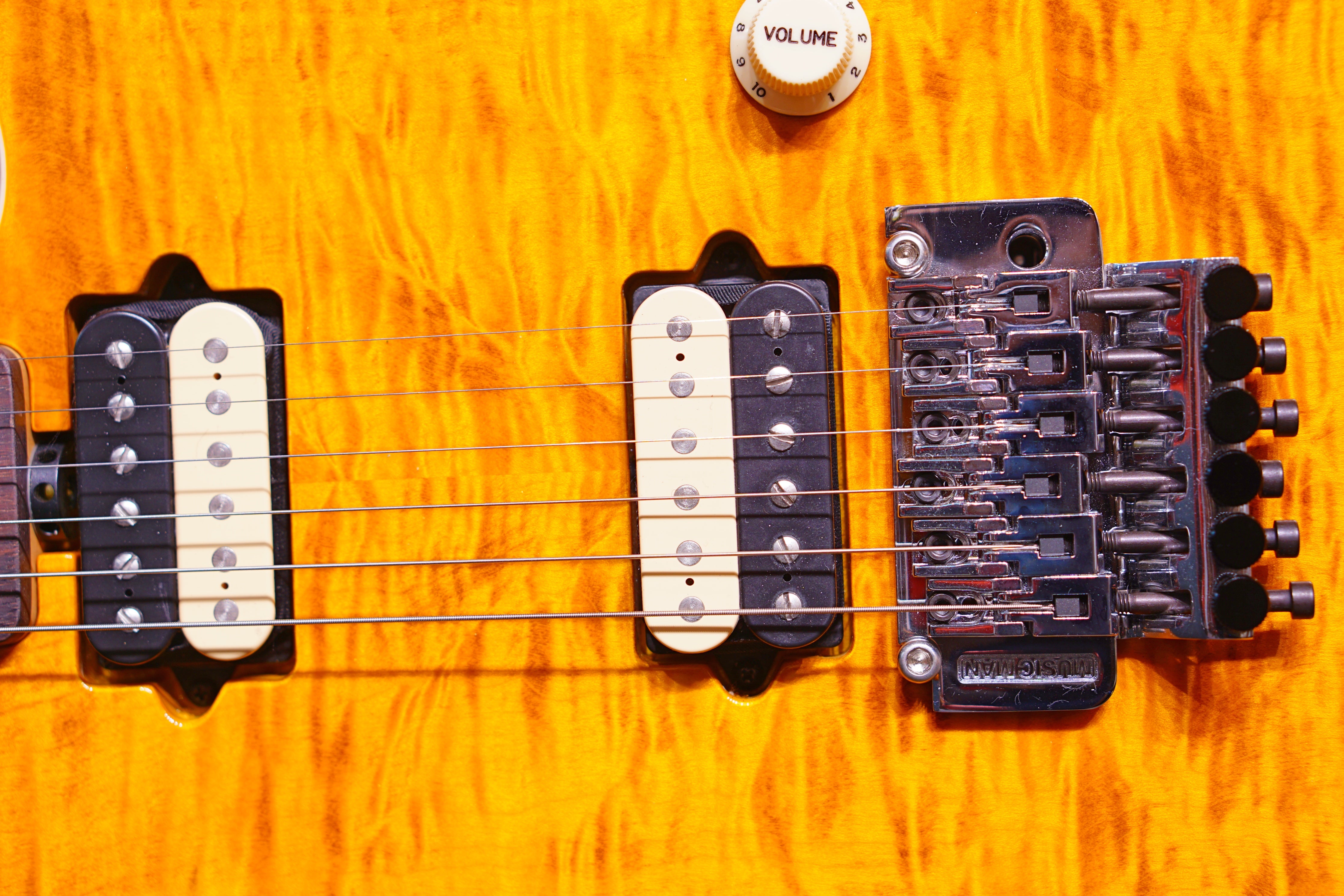

| Pickups | HH - 2 DiMarzio custom humbucking |
| Left Handed | No |
| Strings | 9p-11p-16p-24w-32w-42w (RPS 9 Slinkys #2239) |
Choose options
Ernie Ball Music Man Axis Trans Gold Quilt Match Headstock G85940
Sale priceRp54,000,000.00
