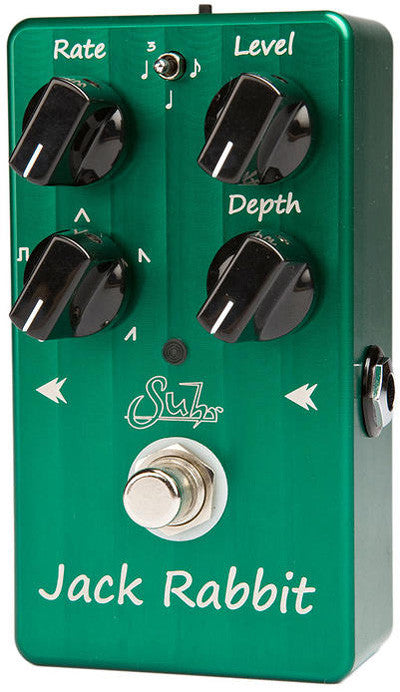

OVERVIEW Jack Rabbit is a high quality analog pedal, that delivers a wide variety of tremolo effects - from warm wobble to whacked out. It features simple control over tempo by incorporating both tap, and strum tempo modes. It's modulation rate spans from 1Hz to 20Hz and utilizes a tempo subdivision switch. The Jack Rabbit Tremolo is housed in a sturdy, aluminum enclosure for maximum protection from abuse. It can be remote controlled via the FX Link jack.
Like all Suhr pedals, the Jack Rabbit Tremolo is True Bypass and can be powered from 9-18Vdc, drawing low current for extended battery life. It is protected from both over voltage and reverse voltage.
TEMPO SUBDIVISION SWITCH Jack Rabbit features quarter note, eighth note, and quarter note triplet subdivisions.
TONE SHAPING TOOLS Jack Rabbit features an easy to tweak layout which includes Rate, Level, Waveform, and Depth controls.
Rate: Controls the speed of the tremolo effect, from 1Hz to 20Hz. Level: Controls the output level of the pedal, from +0dB to +14dB. Depth: Controls the depth of the tremolo effect. Waveform: Selects the modulation waveform which includes Sine, Square, Triangle, Reverse Ramp, and Ramp.
BATTERY MONITOR The internal 9V battery is monitored at both power up and during use. The user will be alerted when the battery voltage becomes low. When the battery becomes too low to reliably operate the pedal, True Bypass is activated.
SPECIFICATIONS: Input Impedance: 1M ohm Output Impedance: 600 ohm Power Connector: 9Vdc, center negative, 2.1mm x 5.5mm Operating Voltage: 5V to 18V (nominal 9V) Maximum Voltage: 20Vdc Reverse Battery Protection: yes Over Voltage Protection: yes Current Consumption: < 20mA Estimated Battery Life: 25 – 50 hours continuous use Dimensions: 2.50" Width x 4.50" Depth x 1.25" Height Weight: 0.75 pound FxLink Connector: 1/8" stereo FxLink max Voltage: 3.3Vdc Shield -> Tip: Activate on/off Shield -> Ring: External Tap ROHS Compliant: Yes Agency Approvals: N/A
